9 axis Cnc Hydraulic Press Brake Machine automatic front supporting plate bending machine

New design CNC press brake and bending machine for sheet metal processing

Application Introduction of CNC Press Brake,

Principe and Features of the CNC Press Brake:

1, Structure of CNC Press Brake:
1) Complete steel-welded structure; left and right houses, working table and cylinder base are welded into a whole frame.

2) After welded, the internal stress is eliminated by tempering, so the whole steel is strong and the stability.
2) ANSYS finite element analysis software to ensure the reliability and strength of the machine frame and the bending precision.

2, CNC system to control:

1) All actions (X,R,Z axes running) of the Back-gauge stopper;

2) The stroke of Ram are controlled

3) The hydraulic system flowing and pressure in two hydraulic servo units

4) The adjustment of deflection compensation

3, Hydraulic system:
1) Integrated control system imported from Rexroth Germany;
2) Two oil tanks with servo main motors+pumps+valves boards driving two sieds cylinderes separately;

3) Decrease the installation of pipelines, less oil is used and oil temperature is low longtime;
4) Ensure the working stability and better appearance.

4, Two main oil cylinders:
1) Closed loop control mode: Germany servo valves boards and imported Grating ruler;

2) High-frequency hydraulic control technology, faster, more efficient and accurate.
3) Totally different from traditional mechanical stop bending machines;
4) High precision of the glide positioning and bending;

5, Back gauge stopper:
1) High quality ball screw and linear guider to ensure the stopping precision.
2) More functional multi-axis blocking is available according to customer's requirement.

3) Standard 2 sets of fingers mounted in Linear guider installed on back gauge beam, as to complex shapes work pieces, 4 or 5 fingers back gauge system and corresponding dies are available for your choose.

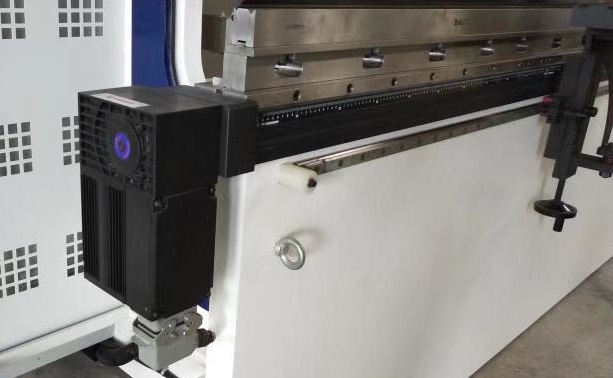

6, Front following Arm:

1) Servo motors driving the supporting arm up and down following bent plate.

2) Special for big sizes plate bending to save workers and avoid accident.

7, Body two sides:
1) C shaped plates are fitted on both sides;
2) The high precision Grating ruler is fixed between the C shaped plates and Ram;
3) Avoid the influences on bending precision arising from distortion of machine body during bending.

Introduction of Main Parts:

-- CNC controller DELEM DA53T:

-- GIVI Grating Ruler

The CNC Press brake use fully closed-loop electro-hydraulic servo control,

Ram position signals can be feedback to CNC system by two sides Sensor Ruler,

then CNC controller DA66T adjusts the oil flowing amount by changing the opening size of synchronous valve

, hereby controlling the ram Y1, Y2 running on the same level, maintaining the parallel state of the worktable.

-- Mechanical Crowning/compensation table

• The local deflection compensation mechanism uses a mechanical interference table compensation structure. CNC controller automatic calculation control.

-- Backgauge stopper,

● X axis drived by servo motor

● R axis drived by servo motor

● Z1,Z2 axes (finger 1 and 2) drived by servo motor (Optional)

● Z3,Z4 axes drived by servo motors to support steel plate follow-up during bending (Optional)

● all axes drived by Servo Motors

-- Front supporting/following arms

-- Quick Clamping to fix Top tool fastly and easily

--Standard Top tool and Double V-Die (Amada style) on machine

Materials: 42CrMo

Overall quenching process, high hardness and good wear resistance.

Single or Double V-die V8,V12,V16 (customized)

-- Germany BAUSER and Busak+Shamban cylinder Seals

-- Reliable electrical system

• Electrical component (Relay, Contactors) France Schneider
• Dustproof cabinet grade IP54 to guarantee the high quality electrical system
• Function of open door and power off
• High quality Estun servo motor drivers

-- Laser safety guarding

HPB series CNC Press Brake parameters,

15kw Cnc Hydraulic Press Brake Machine

Cnc Hydraulic Press Brake Machine 560mm

560mm Cnc Hydraulic Press Machine
